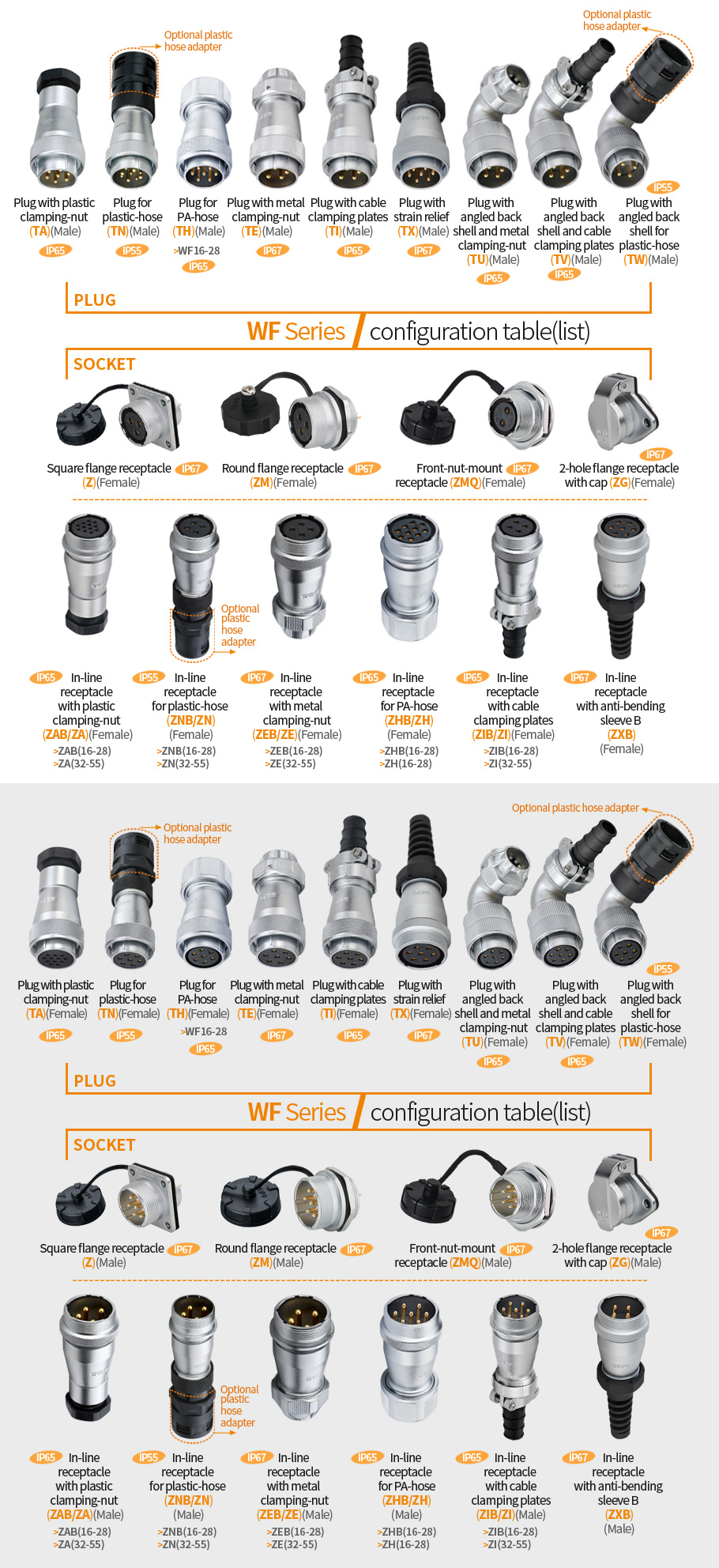

Cable Plug：



Plug with plastic clamping-nut:TA>

Plug for plastic-hose:TN>

Plug with metal clamping-nut:TE>

Plug with cable clamping plates:TI>

Plug with strain relief:TX>

Plug with angled back shell and metal clamping-nut:TU>

Plug with angled back shell and cable clamping plates:TV>

Plug with angled back shell for plastic-hose:TW>

Cable socket：



Square flange receptacle:Z>

Round flange receptacle:ZM>

Front-nut-mount receptacle:ZMQ>

2-hole flange receptacle with cap:ZG>

In-line receptacle with plastic clamping-nut:ZAB>

In-line receptacle with plastic clamping-nut:ZA>

In-line receptacle for plastic-hose:ZNB>

In-line receptacle for plastic-hose:ZN>

In-line receptacle with metal clamping-nut:ZEB>

In-line receptacle with metal clamping-nut:ZE>

In-line receptacle with cable clamping plates:ZIB>

In-line receptacle with cable clamping plates:ZI>

In-line receptacle with anti-bending sleeve:ZXB>



Material and spec


Coupling Threaded
Shell material Zinc alloy with chrome plating
Contact material Brass with gold plating
Insert  material PPS, max temperature 260 ℃
Termination Solder：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5mm;
Screw：Φ2.5、Φ3、Φ3.5mm;
Crimp：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5、Φ10mm
Mating  cycle 500
Temperature  range -40°C~+ 85°C
