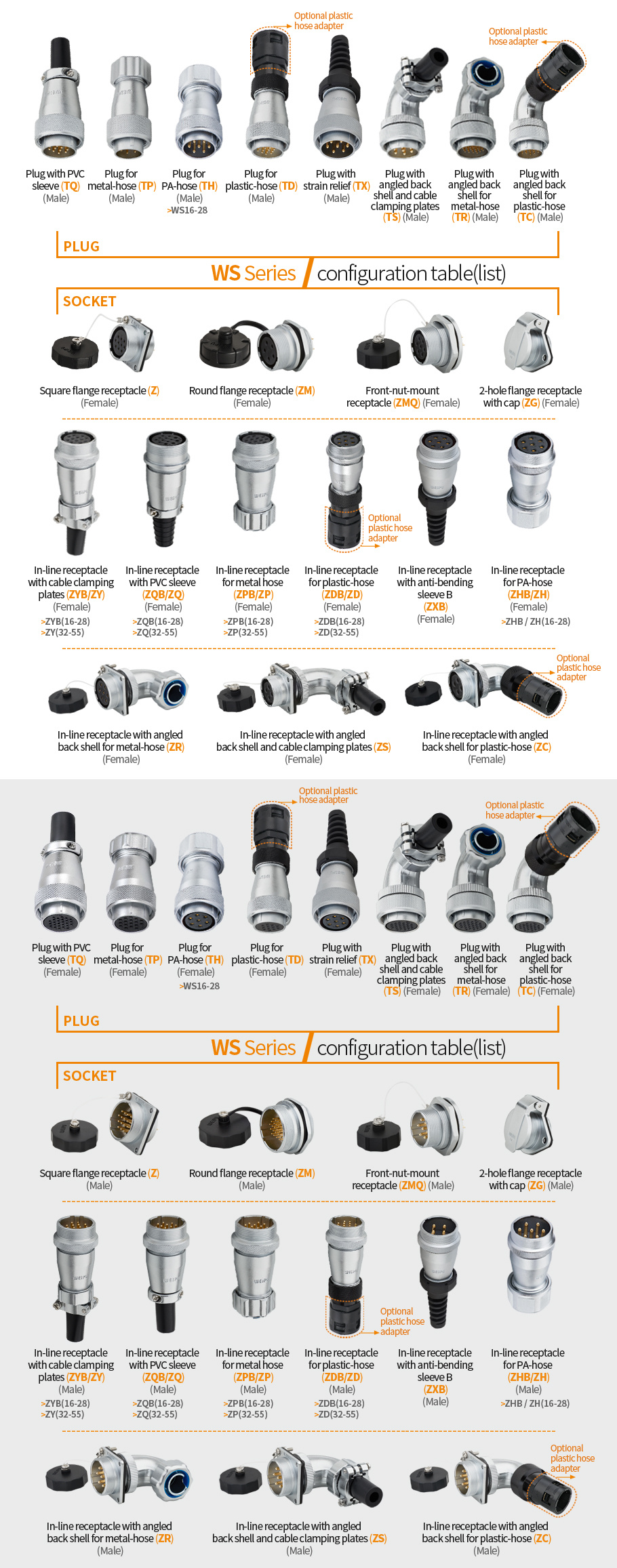

Cable plug：



Plug with PVC sleeve:TQ>

Plug with cable clamping plates:TY>

Plug with strain relief:TX>

Plug for metal-hose:TP>

Plug for plastic-hose:TD>

Plug with angled back shell and cable clamping plates:TS>

Plug with angled back shell for metal-hose:TR>

Plug with angled back shell for plastic-hose:TC>

Cable socket：



Square flange receptacle:Z>

Round flange receptacle:ZM>

Front-nut-mount receptacle:ZMQ>

2-hole flange receptacle with cap:ZG>

In-line receptacle with cable clamping plates:ZYB>

In-line receptacle with cable clamping plates:ZY>

In-line receptacle with PVC sleeve:ZQB>

In-line receptacle with PVC sleeve:ZQ>

In-line receptacle for metal hose:ZPB>

In-line receptacle for metal hose:ZP>

In-line receptacle for plastic-hose:ZDB>

In-line receptacle for plastic-hose:ZD>

In-line receptacle with anti-bending sleeve:ZXB>

In-line receptacle with angled back shell for metal-hose:ZR>

In-line receptacle with angled back shell and cable clamping plates:ZS>

In-line receptacle with angled back shell for plastic-hose:ZC>



Material and spec


Coupling Threaded
Shell material Zinc alloy with chrome plating
Contact material Brass with gold plating
Insert material PPS, max temperature 260 ℃
Termination Solder：Φ1、Φ1. 5、Φ2. 5、Φ3.5、Φ5.5mm；
Screw：Φ2.5、Φ3、Φ3.5mm；
Crimp：Φ1、Φ1. 5、Φ2. 5、Φ3. 5、Φ5. 5、Φ10mm
Mating cycle 500
Temperature range -40°C~+ 85°C
